25YM Honda CRF300 Rally

POSTED: 05/11/2024

TAGS:

Honda Honda 2025

Introduction

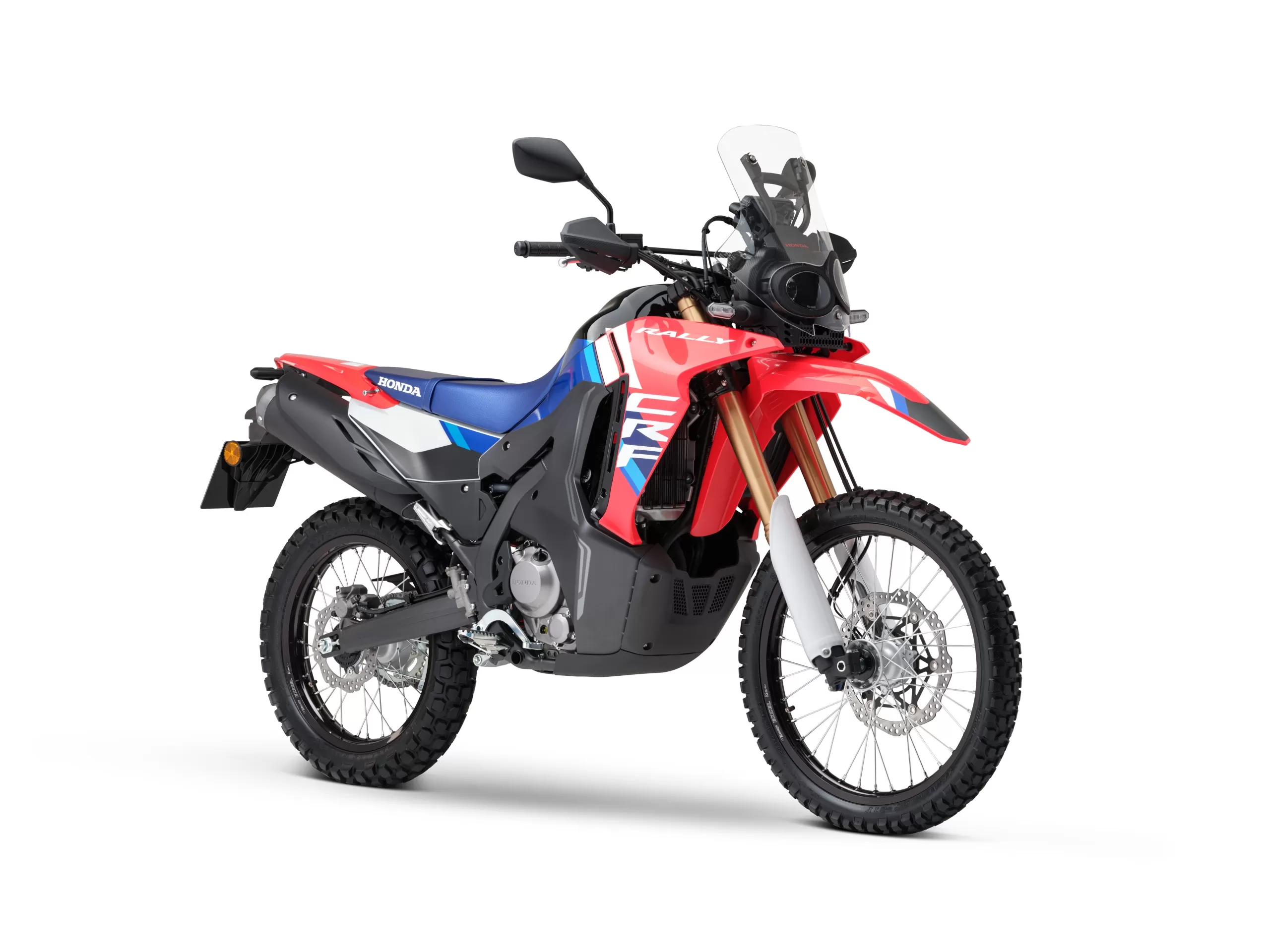

A small capacity dual-purpose motorcycle covers many bases: it slips easily through congested city traffic thanks to lightweight and slim proportions matched with superb manoeuvrability, while its suspension, ground reach and seat height deliver a fun and comfortable ride on rough tarmac and trails. In essence it opens up a whole new range of two-wheeled opportunities, whatever the rider’s experience level.

With styling DNA drawn directly from the HRC CRF450 RALLY Dakar racer, the CRF250 RALLY, based on the trail-ready CRF250L, brought something new to the market on its launch for 17YM. It not only looked ready to compete in a desert stage, but also delivered a real taste of adventure to riders looking for a light, easy-to-manage machine.

In 21YM, alongside the CRF300L*, the CRF300 RALLY made its debut. Lighter, more powerful and even better equipped to explore the CRF300 RALLY was good to go, right out of the box. For 25YM it receives some thoughtful updates that owners will appreciate – whether they’re riding around the world or around the block.

Model Overview

The CRF300 RALLY’s 286cc single-cylinder engine produces 20.1kW and 26.6Nm. Gear ratios one through five are short, for improved response and acceleration, while sixth is tall for more relaxed high-speed cruising. An assist/slipper clutch manages the rear wheel under hard down changes and offers light load at the lever.

A 25YM update is to thermal management, with a redesigned side over mitigating hot air expelled by the fan. EURO5+ compliance has also been achieved.

Tuned rigidity balance between the steel frame, aluminium swingarm and bottom yoke offers excellent feedback and feel. Steering geometry delivers stability and agility, while long travel front and rear suspension – with revised, firmer 25YM damping rates – ensures supple bump absorption and plenty of ground clearance. The riding position encourages the light steering manoeuvrability needed off-road and, just as usefully, around town.

The race inspired sharp-edged bodywork flanks a large, 12.8L capacity fuel tank and comfortable, broad seat, distinctive asymmetric dual LED headlight (the indicators are also compact LED for 25YM) and positive LCD instrument display. An optional USB socket is now available.

The 25YM CRF300 RALLY will be available exclusively in the following colour option:

Extreme Red with blue and white graphic set

Key Features
Engine

DOHC, 286cc single-cylinder engine producing 20.1kW and 26.6Nm
Improved heat management from the radiator
Gearbox ratios set for both acceleration and cruising
Assist/slipper clutch for light lever load
EURO5+ compliant

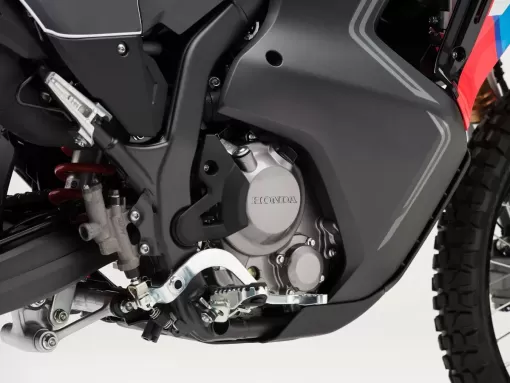

The single-cylinder, liquid-cooled DOHC engine produces peak power of 20.1kW @ 8,500rpm, with peak torque of 26.6Nm @ 6,500rpm. Bore and stroke is set at 76 x 63mm, with compression ratio of 10.7:1.

To match the engine’s punch and for smart pick-up and acceleration, gear ratios one through five are short, while sixth gear is tall for more relaxed highway cruising. An assist/ slipper clutch reduces lever load and manages rear wheel ‘hop’ on rapid downshifts – great for control, on or off-road.

An iridium spark plug, along with precise metering of fuel from the PGM-FI injection system, enhances combustion efficiency and improves environmental credentials. The engine uses an offset cylinder, reducing internal frictional losses, while the piston itself incorporates a special surface material, plus molybdenum coating. The oil pump features an internal relief structure that prevents aeration of relieved oil. The crank journal employs a half-split, press-fit metal bearing while the crank bearing uses a cast-iron bush. A primary balance shaft further reduces vibration.

The cooling system uses a 12.7kW heat-release radiator, sited on the left of the bike. A redesigned side cover mitigates hot air expelled by from the fan.

The engine is EURO5+ compliant with CO2 emissions (WMTC) of 73g/km.

Chassis

Handling and agility ready for action on any terrain
Lightweight frame and swingarm; tuned rigidity balance for both
Long travel front and rear suspension with revised spring rates
Ample ground clearance

Kerb weight of the CRF300 RALLY is just 153kg. The steel semi-double cradle frame’s rigidity balance is tuned to promote handling feel and connection to front/rear traction. The one-piece cast aluminium swingarm is balanced to match.

Extruded aluminium is used for the chain adjustment collar. The bottom yoke is aluminium, saving weight in an area high relative to the centre of gravity for faster steering response. Rake and trail are set at 27.5° and 109mm respectively, with wheelbase at 1455mm, and a ground clearance of 275mm. Turning radius is 2.3m.

The 43mm Showa inverted forks employ a 260mm stroke, with spring weight and damping settings optimised for precise control over a wide range of terrain and speeds. Pro-Link rear suspension also features 260mm axle stroke; the Showa shock absorber is a single tube design. Damping rates at both ends have been revised for 25YM to create a more stable, comfortable platform for riders

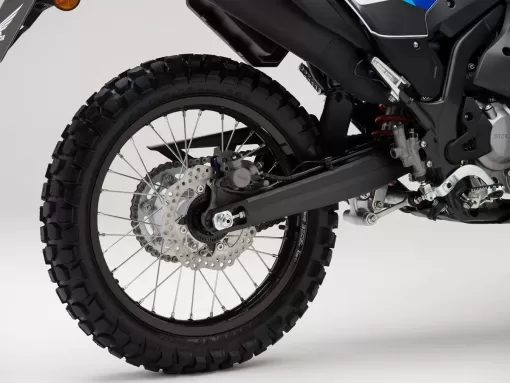

The front brake uses a single 256mm disc gripped by a dual-piston caliper, whilst the rear arrangement utilizes a 220mm disc and mono-piston caliper; in common with the CRF competition machines the rear master cylinder is now a lightweight, integrated design. The discs feature a wave design with exceptional self-cleaning abilities in adverse conditions. 2-channel ABS is standard.

The 21-inch front wheel and 18-inch rear increase stability on rough terrain and allow the fitment of more off-road specific tyres if required. Block pattern enduro-style tyres (front, 80/100-21 51P and rear 120/80-18 62P) provide traction in a wide range of riding situations and surfaces.

Styling & Equipment

Light, slim bodywork inspired by competition CRF machines

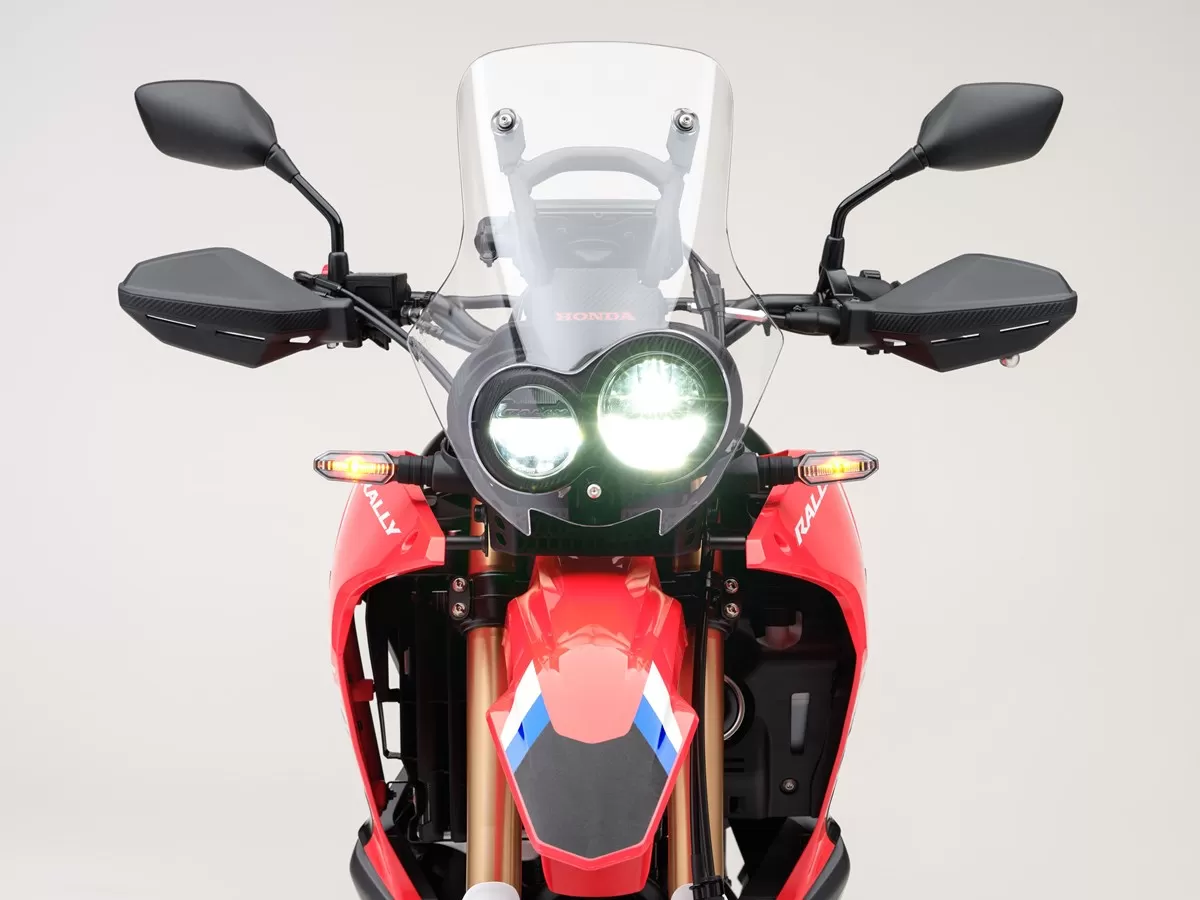

New LED headlight and indicators
Knuckle guards standard equipment
Positive LCD display easy to read and now has USB-C socket nearby

Drawing inspiration from the racing CRFs, the CRF300L wears a crisp set of bodywork and graphics, with standard-fit knuckle guards. The 7.8L fuel tank is slim to aid movement forward and matched by a narrow forward seat section. A minimal rear number plate bracket is matched by an aggressively shaped front mudguard. For 25YM, the CRF300L has a new LED headlight and compact LED indicators.

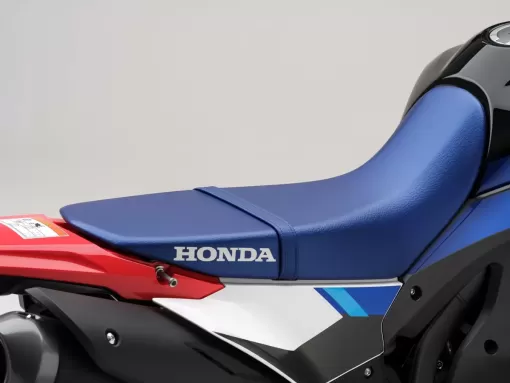

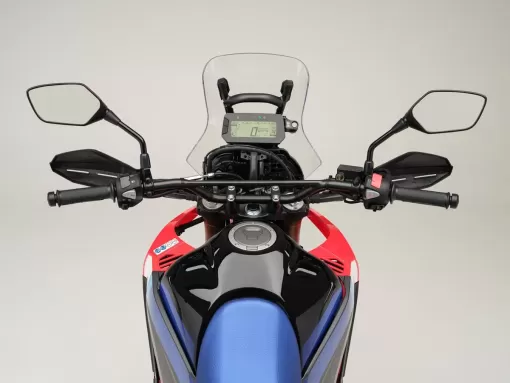

Seat height is set at 880mm. The riding position places machine control and manoeuvrability front and centre with an ‘upright ‘rider triangle’ – wide handlebars are pulled back slightly, with footpegs set low and backward to make gear changes in heavy off-road boots easier.

The side stand too has a broad, folding footplate.

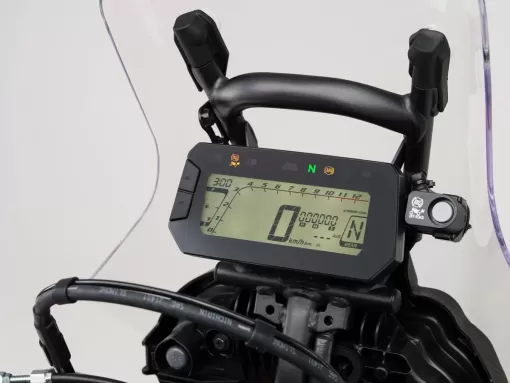

The LCD display weighs just 70g and features large black digits on a crisp white display, for instant readability with large, 23mm speedo numbers. Information includes gear position indicator, fuel mileage and consumption, average speed, stopwatch and rev-counter.

Accessories

Tailor-made Genuine Honda Accessories for the CRF300L amplify the motorcycles capabilities, add extra-comfort and peace of mind, and include:
